Oem led taillight pinout info

[atom13]

I bought a set used without harness. Does anyone know the pinout?



[Jimmy07]

I bought a set used without harness. Does anyone know the pinout?

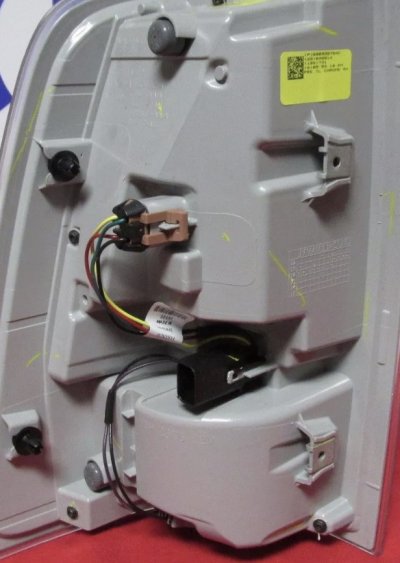

Is this the harness you’re referring to-



[atom13]

Yes sir. Thanks. More thanks if you can tell me their function. Lol



[atom13]

Is this the harness you’re referring to-

Yes sir. Thanks. More thanks if you can tell me their function. Lol



[Jimmy07]

Yes sir. Thanks. More thanks if you can tell me their function. Lol

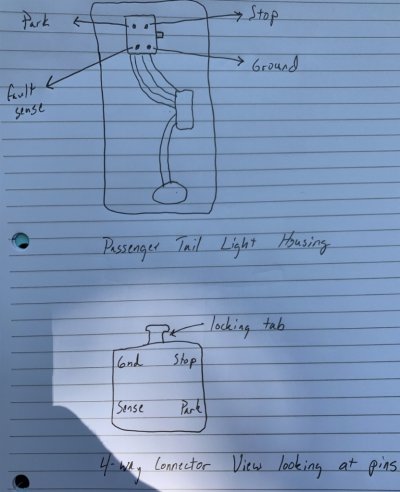

Here’s a drawing I made for another member and he confirmed it-
The lower is just a 7440 bulb socket.



[atom13]

Here’s a drawing I made for another member and he confirmed it-
The lower is just a 7440 bulb socket.

Thanks brother
